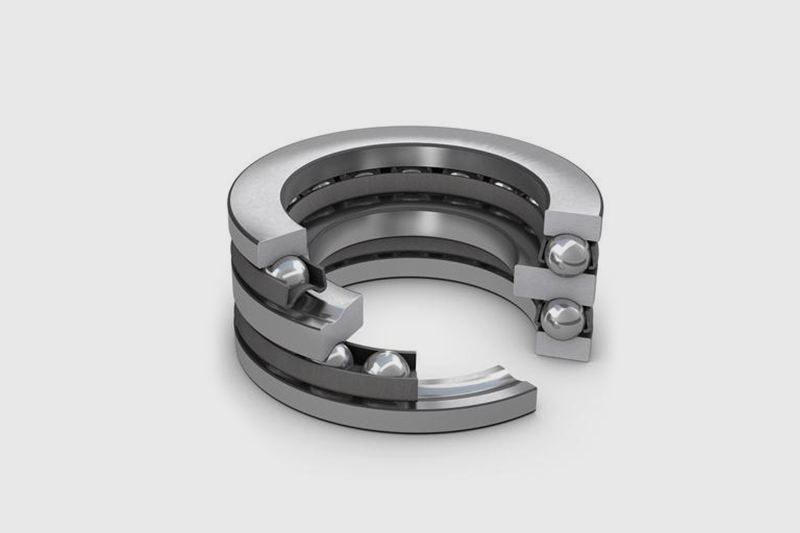

Double Direction thrust ball bearing

SYSTEM DESCRIPTION:

TECHNICAL DRAWING:

PDF-Download

Dimensions				Basic load ratings		Speed ratings		Bearing No
Dimensions				dynamic	static	Reference speed	Limiting speed
d[mm]	D[mm]	H[mm]	H1[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
10	32	22		15.9	25	5300	7500	52202
15	40	26		21.2	37.5	4300	6000	52204
20	47	28		26.5	50	3800	5300	52205
	52	34		34.5	60	3200	4500	52305
	70	52		70.2	122	2200	3200	52406
25	52	29		25.1	51	3600	5000	52206
	60	38		35.8	65.5	2800	4000	52306
	60	41.3	46	35.8	65.5	2800	3800	54306
	80	59		76.1	137	2000	2800	52407
30	62	34		35.1	73.5	3000	4300	52207
	62	37.8	42	35.1	73.5	2800	4000	54207
	68	36		44.2	96.5	2800	3800	52208
	68	44		49.4	96.5	2400	3400	52307
	68	47.2	52	49.4	96.5	2400	3400	54307
	78	49		61.8	122	2200	3000	52308
	78	54.1	59	61.8	122	2200	3000	54308
	90	65		95.6	183	1800	2400	52408
35	73	37		39	86.5	2600	3600	52209
	73	39.6	45	39	86.5	2600	3600	54209
	85	52		76.1	153	2000	2800	52309
	85	56.2	62	76.1	153	1900	2800	54309
	100	72		124	240	1600	2200	52409
	100	78.9	86	124	240	1500	2000	54409
40	78	39		49.4	116	2400	3400	52210
	95	58		81.9	170	1800	2600	52310
	95	64.7	70	81.9	170	1700	2400	54310
	110	83.2	92	148	305	1400	1900	54410
45	90	45		58.5	134	2200	3000	52211
	90	49.6	55	58.5	134	2200	3000	54211
	105	64		101	224	1600	2200	52311
	120	87		195	400	1300	1800	52411
50	95	46		59.2	140	2000	2800	52212
	110	64		101	224	1600	2200	52312
	110	70.7	78	101	224	1500	2200	54312
	130	93		199	430	1200	1700	52412 M
55	100	47		60.5	150	2000	2800	52213
	115	64		106	240	1600	2200	52313
	125	72		135	320	1400	2000	52314
	250	107		234	550	800	1100	52414 M
60	110	47		63.7	170	1900	2600	52215
60	135	79		163	390	1300	1800	52315
65	115	48		76.1	208	2400	3400	52216
	140	79		159	390	1300	1800	52316
	170	128.5	140	307	750	850	1200	54416 M
70	125	55		97.5	275	1600	2200	52217
70	150	95.2	105	174	405	1100	1500	54317
75	135	62		112	290	1500	2000	52218
80	210	159.9	176	371	1060	700	950	54420 M
85	150	67		119	325	1300	1800	52220
85	170	97		225	570	1000	1400	52320
95	160	67		125	365	1300	1800	52222
100	170	68		127	390	1200	1700	52224
110	190	80		182	585	1100	1500	52226
120	200	81		216	670	1000	1400	52228
130	215	89		247	800	950	1300	52230 M
140	225	90		247	800	900	1300	52232 M
150	240	97		281	980	850	1200	52234 M

Company Profile

Ningbo Sanya Bearing Co., Ltd. is well-known China Double Direction thrust ball bearing Suppliers and OEM/ODM Double Direction thrust ball bearing company, established in 1994 stands right at the prime location of the Yangtze River Delta. Specialized in the production of high-quality deep groove ball bearings and insert bearings. It has emerged as a modern company integrating product development, design, manufacturing, sales and service. It can produce bearings with an inner diameter of 3mm to 100mm and customize various non-standard Custom Double Direction thrust ball bearing with highly-automated equipment, stable quality, and complete testing methods ensuring the quality of its products. With the vigorous development of the foreign trade department, our business in bearing production and sales in 2018 far exceeded 20 million US dollars, and the products were sold in more than 50 countries and regions.

The company has established a modernized enterprise management system, pooling talents in various fields to make the company more humane, informatized and international with the ISO9001 quality management system being introduced to the production process to enhance its competitiveness. In 2017, the ISO/TS16949 quality management system was also introduced to seek further development in richer application field.

Taking "integrity; service; cooperation; win-win " as the core values, and "customer first, order primacy" as its working philosophy, adhering to the vision of becoming China's best bearing supplier, while satisfying the customers and helping employees achieve their dreams, it is constantly heading towards the goal of "get the world move with Chinese Bearings ".
