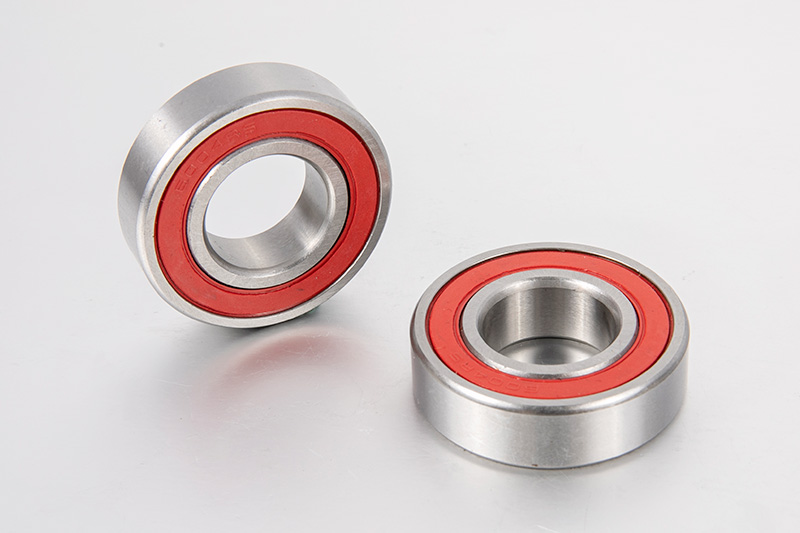

Series 6000 Two Contact Seals Deep Groove Ball Bearing

SYSTEM DESCRIPTION:

Key Features & Benefits

1. Superior Sealing Performance: Total Protection Against Contamination

Feature: Equipped with two-sided (ZZ or 2RS) contact-type lip seals that form a tight, interference fit with the inner ring.
Your Advantage (The Flow-Generating Points):
- “Expert in Dust & Water Resistance”: Effectively blocks dust, powder, fibers, and other fine solid contaminants, with excellent resistance to moisture and water splash.
- “Eliminate Premature Failure”: Prevents bearing seizure, wear, and noise caused by contaminant ingress, drastically reducing downtime.
- Ideal For: Agricultural machinery, fans, power tools, food processing equipment, and conveyor systems in harsh, dusty, or damp conditions.

2. Long-Term Lubrication & Maintenance Freedom: Set It and Forget It

Feature: Pre-lubricated with high-quality grease at the factory and perfectly sealed in.
Your Advantage (The Flow-Generating Points):
- “Life-Time Lubricated, Maintenance-Free”: For most applications, no re-lubrication is needed throughout the entire service life, saving significant time and cost.
- “Zero Grease Leakage”: The contact seals prevent grease from being thrown out during high-speed operation, ensuring the core raceways are always optimally lubricated.
- “Ready-to-Install”: Simplifies your assembly process; install straight out of the box with no additional lubrication steps.

3. Exceptional Operational Stability: Quiet, Smooth, and Precise

Feature: Based on a high-performance deep groove design and precision manufacturing for smooth, low-torque operation.
Your Advantage (The Flow-Generating Points):
- “Library-Quiet Operation”: Optimized internal structure and precise sealing result in extremely low noise and vibration, perfect for home appliances, office equipment, and precision instruments.
- “The Benchmark for Power Transmission”: Capable of handling radial loads and moderate bidirectional axial loads, providing stable and reliable rotation to ensure operational accuracy.

4. Universal Compatibility & Cost-Effectiveness: One Bearing, Countless Uses

Feature: The 6000 series conforms to international standard dimensions (Bore: 10mm x OD: 26mm x Width: 8mm), ensuring high interchangeability.
Your Advantage (The Flow-Generating Points):
- “The Universal Replacement King”: As one of the most common bearing sizes, it is readily available and an ideal spare part for repair, upgrade, and manufacturing.
- “The Epitome of Value”: Delivers exceptional sealing and long life at a highly competitive price, offering the best balance of cost and performance.

5. Robust Durability & Guaranteed Quality

Feature: Manufactured from high-grade bearing steel and subjected to strict heat treatment processes for high wear resistance and fatigue strength.
Your Advantage (The Flow-Generating Points):
- “Extended Service Life”: Every aspect, from material to craftsmanship, is designed for durability, ensuring consistent performance under continuous operation.
- “Consistent Quality”: Every single bearing undergoes precise inspection to guarantee strict dimensional and performance consistency, safeguarding your product quality.

Typical Applications

Home Appliances: Washing machines, AC fan motors, vacuum cleaners, juicers (Highlight: Quiet, Water-Resistant).
Automotive Components: Generators, water pumps, idler pulleys, fan clutches (Highlight: Heat Resistant, Long-Life).
Industrial Power Transmission: Small gearboxes, conveyor rollers, agricultural machinery (Highlight: Dustproof, Maintenance-Free).
Office Equipment & Precision Instruments: Printers, scanners, precision measuring devices (Highlight: Low Noise, High Precision).

TECHNICAL DRAWING:

Bearing No.						Dimension (mm)				Basic Load Rating		Weight
Bearing No.						Dimension (mm)				Dynamic	Static	Weight
Open	Shield	Seal non- contact	Seal contact	Snap groove	Snap ring	d	D	B	r	Cr（N)	Cor（N)	(KG)
6000	ZZ	2RZ	2RS	N	NR	10	26	8	0.3	4550	1970	0.019
6001	ZZ	2RZ	2RS	N	NR	12	28	8	0.3	5100	2390	0.023
6002	ZZ	2RZ	2RS	N	NR	15	32	9	0.3	5600	2840	0.032
6003	ZZ	2RZ	2RS	N	NR	17	35	10	0.3	6000	3250	0.039
6004	ZZ	2RZ	2RS	N	NR	20	42	12	0.6	9400	5000	0.07
60/22	ZZ	2RZ	2RS	N	NR	22	44	12	0.6	9400	5050	0.074
6005	ZZ	2RZ	2RS	N	NR	25	47	12	0.6	10100	5850	0.079
60/28	ZZ	2RZ	2RS	N	NR	28	52	12	0.6	12500	7400	0.098
6006	ZZ	2RZ	2RS	N	NR	30	55	13	1	13200	8300	0.117
60/32	ZZ	2RZ	2RS	N	NR	32	58	13	1	15100	9150	0.129
6007	ZZ	2RZ	2RS	N	NR	35	62	14	1	16000	10300	0.156
6008	ZZ	2RZ	2RS	N	NR	40	68	15	1	16800	11500	0.194
6009	ZZ	2RZ	2RS	N	NR	45	75	16	1	21000	15200	0.246
6010	ZZ	2RZ	2RS	N	NR	50	80	16	1	21800	16600	0.264
6011	ZZ	2RZ	2RS	N	NR	55	90	18	1.1	28300	21300	0.384
6012	ZZ	2RZ	2RS	N	NR	60	95	18	1.1	29500	23200	0.418
6013	ZZ	2RZ	2RS	N	NR	65	100	18	1.1	30500	25200	0.438
6014	ZZ	2RZ	2RS	N	NR	70	110	20	1.1	38000	31000	0.607
6015	ZZ	2RZ	2RS	N	NR	75	115	20	1.1	39500	33600	0.63
6016	ZZ	2RZ	2RS	N	NR	80	125	22	1.1	47600	39700	0.85
6017	ZZ	2RZ	2RS	N	NR	85	130	22	1.1	49500	43000	0.89
6018	ZZ	2RZ	2RS	N	NR	90	140	24	1.5	58200	46600	1.16
6019	ZZ	2RZ	2RS	N	NR	95	145	24	1.5	60500	53700	1.21
6020	ZZ	2RZ	2RS	N	NR	100	150	24	2.1	60100	54200	1.25

Tolerance Class

Standard	Tolerance class
GB/T307.1	PO	P6	P5	P4
IS0492	C LASSO	CLASS6	CLASS5	CLASS4
AFBMA STD.20	ABEC1	ABEC3	ABEC5	ABEC7

Bearing Material

Chrome Steel: Chemical Composition of Chrome Steel

Steel No	Chemical Composition%
Steel No	C	Si	Mn	P	S	Cr
Gcr15	0.95-1.05	0.15-0.35	0.20-0.40	≤0.027	≤0.02	1.30-1.65

The Interchange of Chrome Steel No.

Country	China	ISO	U.S.A	Germany	Japan	Sweden
Bearings Steel No.	Gcr15	638/XVII 1	(AISI)52100	(DIN)100Cr6	(Jis)SVJ2	SKF3

Packing

Tube packing, single box packing or other industrial packing are all available.Special requirements should be mentioned in the order

Our own NSJ package is as below
