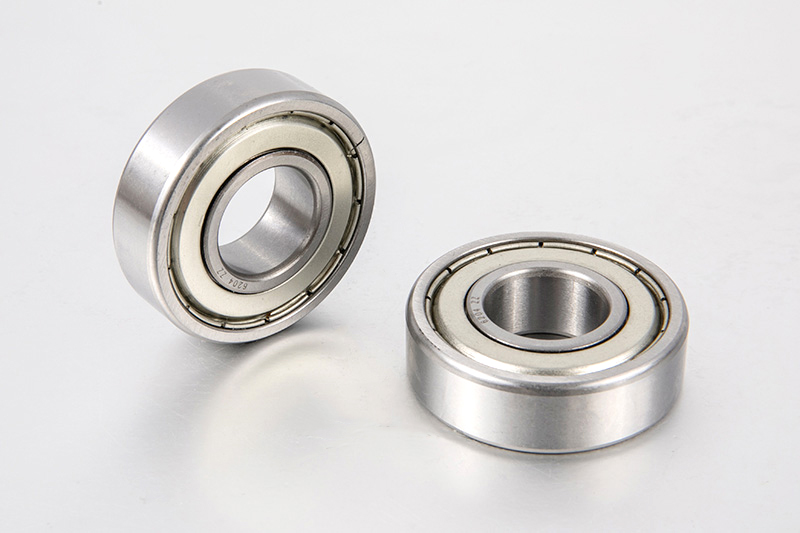

Series 6200 Barrel Roller Deep Groove Ball Bearing

Series 6200 Barrel Roller Deep Groove Ball Bearing

SYSTEM DESCRIPTION:

0

PRODUCT DETAILS:

Bearing No. Dimension (mm) Basic Load Rating  Weight
Dynamic Static
Open Shield Seal contact Snap groove Snap ring d D B r Cr(N) Cor(N) (KG)
6200 ZZ 2RS N NR 10 30 9 0.6 5100 2390 0.032
6201 ZZ 2RS N NR 12 32 10 0.6 6800 3050 0.037
6202 ZZ 2RS N NR 15 35 11 0.6 7650 3700 0.045
6203 ZZ 2RS N NR 17 40 12 0.6 9550 4800 0.065
6204 ZZ 2RS N NR 20 47 14 1 12800 6600 0.106
62/22 ZZ 2RS N NR 22 50 14 1 13900 6950 0.120
6205 ZZ 2RS N NR 25 52 15 1 14000 7900 0.128
62/28 ZZ 2RS N NR 28 58 16 1 17900 9750 0.175
6206 ZZ 2RS N NR 30 62 16 1 19500 11300 0.199
62/32 ZZ 2RS N NR 32 65 17 1 22400 13100 0.230
6207 ZZ 2RS N NR 35 72 17 1.1 25700 15300 0.280
6208 ZZ 2RS N NR 40 80 18 1.1 29100 17900 0.366
6209 ZZ 2RS N NR 45 85 19 1.1 32500 20500 0.407
6210 ZZ 2RS N NR 50 90 20 1.1 35000 23200 0.463
6211 ZZ 2RS N NR 55 100 21 1.5 43500 29300 0.607
6212 ZZ 2RS N NR 60 110 22 1.5 52500 36000 0.783
6213 ZZ 2RS N NR 65 120 23 1.5 57000 40000 0.990
6214 ZZ 2RS N NR 70 125 24 1.5 62000 44000 1.070
6215 ZZ 2RS N NR 75 130 25 1.5 66200 49300 1.180
6216 ZZ 2RS N NR 80 140 26 2.0  72700 53000 1.400
6217 ZZ 2RS N NR 85 150 28 2 77000 59000 1.790
6218 ZZ 2RS N NR 90 160 30 2 102400 75900 2.150
6219 ZZ 2RS N NR 95 170 32 2.1 108700 81700 2.620
6220 ZZ 2RS N NR 100 180 34 2.1 122100 92700 3.140



Tolerance Class

Standard

Tolerance class

GB/T307.1

PO

P6

P5

P4

IS0492

C LASSO

CLASS6

CLASS5

CLASS4

AFBMA STD.20

ABEC1

ABEC3

ABEC5

ABEC7

Bearing Material

Chrome Steel: Chemical Composition of Chrome Steel

Steel No

Chemical Composition%

C

Si

Mn

P

S

Cr

Gcr15

0.95-1.05

0.15-0.35

0.20-0.40

≤0.027

≤0.02

1.30-1.65

The Interchange of Chrome Steel No.

Country

China

ISO

U.S.A

Germany

Japan

Sweden

Bearings
Steel No.

Gcr15

638/XVII 1

(AISI)52100

(DIN)100Cr6

(Jis)SVJ2

SKF3

Packing

Tube packing, single box packing or other industrial packing are all available.Special requirements should be mentioned in the order

Our own NSJ package is as below







Company Profile

Ningbo Sanya Bearing Co., Ltd. is well-known China Series 6200 Barrel Roller Deep Groove Ball Bearing Suppliers and OEM/ODM Series 6200 Barrel Roller Deep Groove Ball Bearing company, established in 1994 stands right at the prime location of the Yangtze River Delta. Specialized in the production of high-quality deep groove ball bearings and insert bearings. It has emerged as a modern company integrating product development, design, manufacturing, sales and service. It can produce bearings with an inner diameter of 3mm to 100mm and customize various non-standard Custom Series 6200 Barrel Roller Deep Groove Ball Bearing with highly-automated equipment, stable quality, and complete testing methods ensuring the quality of its products. With the vigorous development of the foreign trade department, our business in bearing production and sales in 2018 far exceeded 20 million US dollars, and the products were sold in more than 50 countries and regions.

The company has established a modernized enterprise management system, pooling talents in various fields to make the company more humane, informatized and international with the ISO9001 quality management system being introduced to the production process to enhance its competitiveness. In 2017, the ISO/TS16949 quality management system was also introduced to seek further development in richer application field.

Taking "integrity; service; cooperation; win-win " as the core values, and "customer first, order primacy" as its working philosophy, adhering to the vision of becoming China's best bearing supplier, while satisfying the customers and helping employees achieve their dreams, it is constantly heading towards the goal of "get the world move with Chinese Bearings ".
