Series 1600 Chrome Steel Deep Groove Ball Bearing
Product Overview The Series 1600 Deep Groove Ball Bearing is a cornerstone of modern mechanical engi...
Bearing No. | Dimension (mm) | Basic Load Rating | Weight | |||||
Dynamic | Static | |||||||
Open | Shield contact | d | D | B | r | Cr(N) | Cor(N) | (KG) |
62200 | 2RS | 10 | 30 | 14 | 1 | 5070 | 2360 | 0.040 |
62201 | 2RS | 12 | 32 | 14 | 1 | 6890 | 3100 | 0.046 |
62202 | 2RS | 15 | 35 | 14 | 1 | 7800 | 3750 | 0.056 |

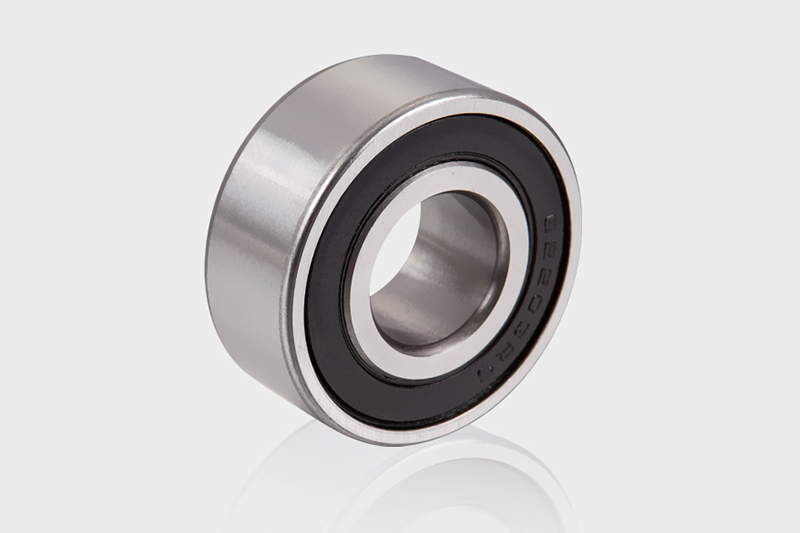

62203 | 2RS | 17 | 40 | 16 | 1 | 9560 | 4750 | 0.085 |
62204 | 2RS | 20 | 47 | 18 | 1.5 | 12700 | 6550 | 0.128 |
62205 | 2RS | 25 | 52 | 18 | 1.5 | 14000 | 7800 | 0.146 |
62206 | 2RS | 30 | 62 | 20 | 1.5 | 19500 | 11200 | 0.242 |
62207 | 2RS | 35 | 72 | 23 | 2 | 25500 | 15300 | 0.435 |
62208 | 2RS | 40 | 80 | 23 | 2 | 30700 | 19000 | 0.450 |
62209 | 2RS | 45 | 85 | 23 | 2 | 33200 | 21600 | 0.485 |
62210 | 2RS | 50 | 90 | 23 | 2 | 35100 | 23200 | 0.535 |
62211 | 2RS | 55 | 100 | 25 | 1.5 | 43600 | 29000 | 0.700 |
62212 | 2RS | 60 | 110 | 28 | 1.5 | 47500 | 32500 | 0.970 |
62213 | 2RS | 65 | 120 | 31 | 1.5 | 55900 | 40500 | 1.250 |
62214 | 2RS | 70 | 125 | 31 | 1.5 | 60500 | 45000 | 1.300 |
62300 | 2RS | 10 | 35 | 17 | 1 | 8060 | 3400 | 0.060 |
62301 | 2RS | 12 | 37 | 17 | 1.5 | 9750 | 4150 | 0.074 |
62302 | 2RS | 15 | 42 | 17 | 1.5 | 11400 | 5400 | 0.110 |
62303 | 2RS | 17 | 47 | 19 | 1.5 | 13500 | 6550 | 0.149 |
62304 | 2RS | 20 | 52 | 21 | 2 | 15900 | 7800 | 0.197 |
62305 | 2RS | 25 | 62 | 24 | 2 | 22500 | 11600 | 0.320 |
62306 | 2RS | 30 | 72 | 27 | 2 | 28100 | 16000 | 0.485 |
62307 | 2RS | 35 | 80 | 21 | 1.5 | 33500 | 19100 | 0.457 |
62308 | 2RS | 40 | 90 | 33 | 2.5 | 41000 | 24000 | 0.910 |
62309 | 2RS | 45 | 100 | 36 | 2.5 | 52700 | 31500 | 1.190 |
62310 | 2RS | 50 | 110 | 40 | 2 | 61800 | 38000 | 1.550 |
62311 | 2RS | 55 | 120 | 43 | 2 | 71500 | 45000 | 1.950 |
62312 | 2RS | 60 | 130 | 46 | 2 | 81900 | 52000 | 2.500 |
62313 | 2RS | 65 | 140 | 48 | 2 | 92300 | 60000 | 3.000 |
62314 | 2RS | 70 | 150 | 51 | 2 | 104000 | 68000 | 3.550 |
Tolerance Class
Standard |
Tolerance class |
|||
GB/T307.1 |
PO |
P6 |
P5 |
P4 |
IS0492 |
C LASSO |
CLASS6 |
CLASS5 |
CLASS4 |
AFBMA STD.20 |
ABEC1 |
ABEC3 |
ABEC5 |
ABEC7 |
Bearing Material
Chrome Steel: Chemical Composition of Chrome Steel
Steel No |
Chemical Composition% |
|||||
C |
Si |
Mn |
P |
S |
Cr |
|
Gcr15 |
0.95-1.05 |
0.15-0.35 |
0.20-0.40 |
≤0.027 |
≤0.02 |
1.30-1.65 |
The Interchange of Chrome Steel No.
Country |
China |
ISO |
U.S.A |
Germany |
Japan |
Sweden |
Bearings |
Gcr15 |
638/XVII 1 |
(AISI)52100 |
(DIN)100Cr6 |
(Jis)SVJ2 |
SKF3 |
Packing
Tube packing, single box packing or other industrial packing are all available.Special requirements should be mentioned in the order
Our own NSJ package is as below
Ningbo Sanya Bearing Co., Ltd. is a professional China Series 62200 & 62300 Deepen and thicken Deep Groove Ball Bearing Manufacturers and Series 62200 & 62300 Deepen and thicken Deep Groove Ball Bearing Factory.We established in 1994 stands right at the prime location of the Yangtze River Delta. Specialized in the production of high-quality deep groove ball bearings and insert bearings. It has emerged as a modern company integrating product development, design, manufacturing, sales and service. It can produce bearings with an inner diameter of 3mm to 100mm and customize various non-standard Custom Series 6000 Two Contact Seals Deep Groove Ball Bearing with highly-automated equipment, stable quality, and complete testing methods ensuring the quality of its products. With the vigorous development of the foreign trade department, our business in bearing production and sales in 2018 far exceeded 20 million US dollars, and the products were sold in more than 50 countries and regions.
The company has established a modernized enterprise management system, pooling talents in various fields to make the company more humane, informatized and international with the ISO9001 quality management system being introduced to the production process to enhance its competitiveness. In 2017, the ISO/TS16949 quality management system was also introduced to seek further development in richer application field.
Taking "integrity; service; cooperation; win-win " as the core values, and "customer, order primacy" as its working philosophy, adhering to the vision of becoming China's bearing supplier, while satisfying the customers and helping employees achieve their dreams, it is constantly heading towards the goal of "get the world move with Chinese Bearings ".
