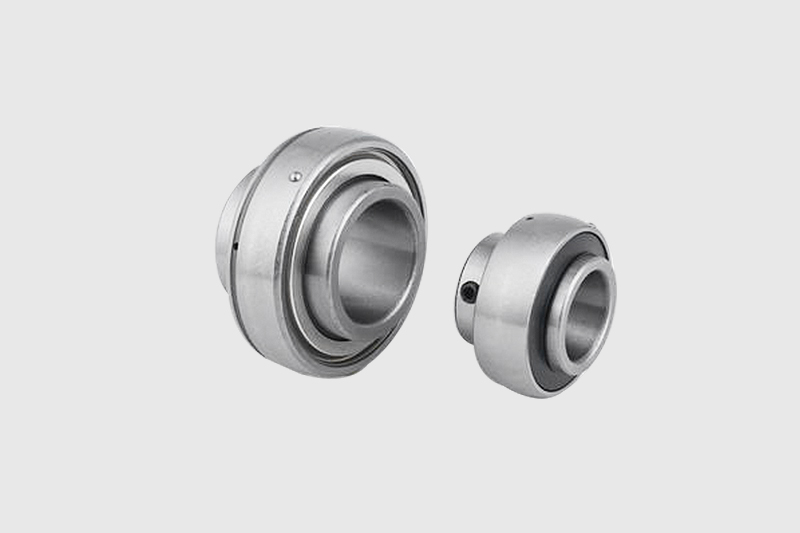

SB Hybrid Ceramic Insert Bearing Series

SB Hybrid Ceramic Insert Bearing Series

SYSTEM DESCRIPTION:

SB Hybrid Ceramic Insert Bearing Series

PRODUCT DETAILS:

Bearing No. Shaft Dia.   D   B   C                   Dimension   mm   ds Dynamic load  Statie load Weight (kg)
d  S  h in. ratings  ratings
(in.) (mm) G Cr (KN) Cor (KN)
SB       201   12 40 1.5748 22  0.8661 12 0.4724 6 0.2362 3.4 0.1338 4.5 0.1772 M5×0.8       10#-32UNF 7.35 4.78 0.1
201-8 1/2   0.1
202   15 0.09
202-9 9/16   0.09
202-10 5/8   0.09
203   17 0.08
203-11 11/16   0.08
SB  204   20 47
1.8504
25
0.9843
14
0.5512
7
0.2756
3.7
0.1456
5
0.1969
M6×1           1/4-28UNF 9.88 6.65 0.12
204-12 3/4   0.13
SB    205   25 52 2.0472 27 1.0630 15 0.5906 7.5 0.2953 3.9 0.1535 5.5 0.2165 M6×1           1/4-28UNF 10.8 7.88 0.18
205-14 7/8   0.17
205-15 15/16   0.17
205-16 1   0.16
SB    206   30 62 2.4409 30 1.1811 16 0.6299 8 0.3150 5 0.1969 6 0.2362 M6×1           1/4-28UNF 15 11.2 0.25
206-18 1-1/8   0.26
206-19 1-3/16   0.25
206-20 1-1/4   0.23
SB     207   35 72 2.8346 32 1.2598 17 0.6693  8.5 0.3346 5.7 0.2244 6 0.2362 M6×1           1/4-28UNF 19.8 15.2 0.37
207-20 1-1/4   0.41
207-21 1-5/16   0.39
207-22 1-3/8   0.37
207-23 1-7/16   0.35
SB   208   40 80 3.1496 34 1.3386 18 0.7087 9 0.3543 6.2 0.2441 7 0.2756 M8×1           5/16-28UNF 22.8 18.2 0.45
208-24 1-1/2   0.48
208-25 1-9/16   0.45
SB    209   45 85 3.3465 41.2 1.6220 19 0.7480 10.2 0.4016 6.4 0.2519 8.2 0.3228 M8×1           5/16-28UNF 24.5 20.8 0.69
209-26 1-5/8   0.76
209-27 1-11/16   0.73
209-28 1-3/4   0.69
SB   210   50 90 3.5433 43.5 1.7126 20 0.7874 10.9 0.4291 6.5 0.2559 9.2 0.3622 M8×1           5/16-28UNF 27 23.2 0.79
210-30 1-7/8   0.83
210-31 1-15/16   0.79
SB    211   55 100 3.9370 45.3 1.7835 23 0.9055 11.8 0.4646 7 0.2756 9.8 0.3858 M8×1           5/16-28UNF 33.5 29.2 0.84
211-32 2   0.96
211-34 2-1/8   0.87
211-35 2-3/16   0.81
SB    212   60 110 4.3307 53.7 2.1142 24 0.9449 14.9 0.5866 7.6 0.2993 9.8 0.3898 M10×1.25          3/8-24UNF 36.8 32.8 1.20
212-36 2-1/4   1.30
212-38 2-3/8   1.09
212-39 2-7/16   1.09



Tolerance Class

Standard

Tolerance class

GB/T307.1

PO

P6

P5

P4

IS0492

C LASSO

CLASS6

CLASS5

CLASS4

AFBMA STD.20

ABEC1

ABEC3

ABEC5

ABEC7

Bearing Material

Chrome Steel: Chemical Composition of Chrome Steel

Steel No

Chemical Composition%

C

Si

Mn

P

S

Cr

Gcr15

0.95-1.05

0.15-0.35

0.20-0.40

≤0.027

≤0.02

1.30-1.65

The Interchange of Chrome Steel No.

Country

China

ISO

U.S.A

Germany

Japan

Sweden

Bearings
Steel No.

Gcr15

638/XVII 1

(AISI)52100

(DIN)100Cr6

(Jis)SVJ2

SKF3

Packing

Tube packing, single box packing or other industrial packing are all available.Special requirements should be mentioned in the order

Our own NSJ package is as below
