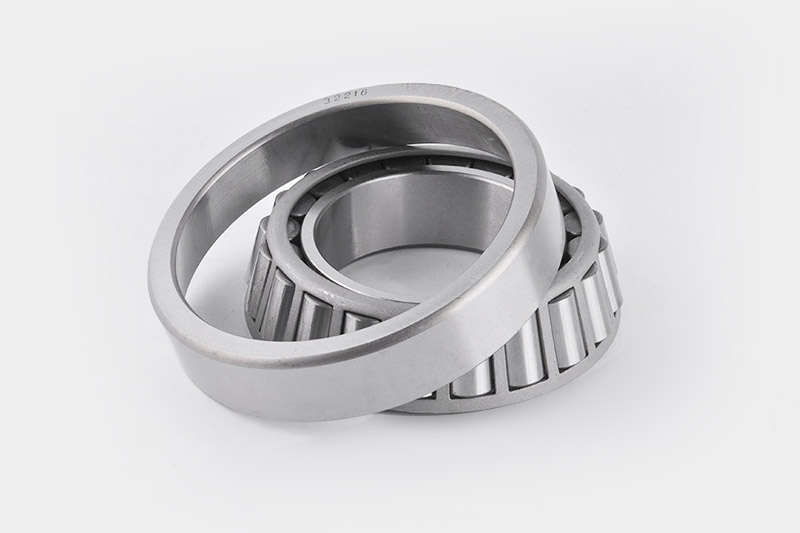

Single row Taper Roller Bearings

SYSTEM DESCRIPTION:

I. Product Positioning
Single Row Taper Roller Bearings are a core product series from Ningbo Sanya Bearing Co., Ltd., a professional manufacturer established in 1994. This product is specifically designed for heavy-duty industrial and automotive applications that require handling extremely high loads and strict mechanical rigidity.

II. Core Structure and Working Principle

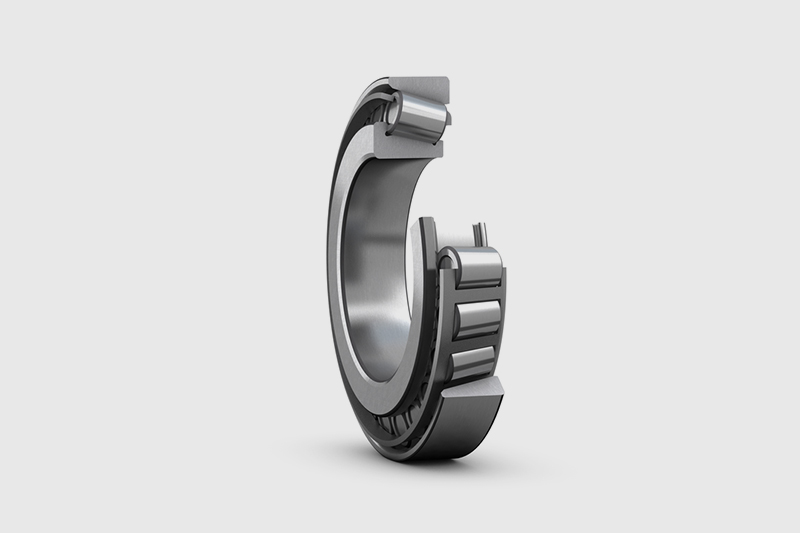

Tapered Roller Design: The bearing consists of an inner ring, an outer ring, and tapered rollers. The contact geometry between the rolling elements and the raceways ensures pure rolling motion.
Composite Load Handling: Unlike bearings that primarily handle radial forces, single row taper roller bearings are engineered to simultaneously accommodate massive radial loads and heavy axial loads in one direction.
Separable Structure: These bearings typically feature a separable design, meaning the inner ring assembly (cone) and the outer ring (cup) can be installed independently, greatly simplifying mechanical assembly and maintenance processes.

III. Performance Advantages and Applications

High Rigidity and Long Service Life: Due to their linear contact characteristics, these bearings exhibit minimal deformation under heavy loads, significantly enhancing the operational precision of the shaft system.
Paired Installation Flexibility: Similar to angular contact ball bearings, single row taper roller bearings are often installed in pairs or in an opposed arrangement to accommodate axial forces from opposite directions and to adjust internal clearance.
Wide Range of Applications: They are widely utilized in automotive wheel hubs, transmissions, gear reducers, and various types of heavy construction machinery.

IV. Manufacturing Assurance and International Standards

Lean Production: Ningbo Sanya Bearing utilizes highly-automated equipment and comprehensive testing methods to ensure consistent product quality.
Rigorous Certification: The company is ISO9001 certified and introduced the ISO/TS16949 quality management system in 2017. This ensures that production processes meet high global automotive industry standards, providing customers with high-precision, long-life solutions.
Global Vision: With over 20 years of export experience, the company’s products are sold in more than 50 countries and regions. Guided by the goal to “get the world move with Chinese Bearings,” they offer cost-effective solutions to global clients.

TECHNICAL DRAWING:

Single row tapered roller bearings are designed to accommodate
combined loads, i.e. simultaneously acting radial and axial loads. The axial load carrying capacity of tapered roller bearings increases with increasing contact angle α. The size of the contact angle, which is usually between 10° and 30°.

BEARING NO.	OVERALL DIMENSION (mm)			LOADING RATING(KN)		WEIGHT
BEARING NO.	d	D	T	Cr	Cor	(KG)
30202	15	35	11.75	11.9	13.5	0.053
30302	15	42	14.25	24.4	22.5	0.1
30203	17	40	13.25	20	20.2	0.082
30303	17	47	15.25	30.3	28.4	0.13
30204	20	47	15.25	28.3	29.2	0.128
30304		52	16.25	35.6	34.5	0.17
32204		47	19.25	36.5	39.5	0.161
32304		52	22.25	46.4	48.3	0.23
32004X		42	15	21.1	29.4	0.1
30205	25	52	16.25	31.6	34.4	0.14
30305		62	18.25	50.2	50.1	0.26
31305		62	18.25	40.7	46	0.264
32205		52	19.25	42	47	0.184
32305		62	25.25	67	72.3	0.36
33205		52	22	51.1	63.6	0.22
32005X		47	15	28.5	35.4	0.14
30206	30	62	17.25	40.5	43.8	0.23
30306		72	20.75	59.5	60.6	0.38
31306		72	20.75	47.3	50	0.396
32206		62	21.25	50.3	57.6	0.28
32306		72	28.75	81.1	89.8	0.55
33206		62	25	64.4	76.5	0.37
32006X		55	17	36.3	45.4	0.17
30207	35	72	18.25	53.4	59.2	0.32
30307		80	22.75	80.4	85.6	0.52
31307		80	22.75	61.6	67	0.518
32207		72	24.25	69.3	82.3	0.43
32307		80	32.75	107	123	0.74
33207		72	28	84.2	106	0.522
32007X		62	18	44.2	57.8	0.23
30208	40	80	19.75	59.9	65.4	0.41
30308		90	25.25	91.4	102	0.72
31308		90	25.25	81	96	0.727
32208		80	24.75	74.9	86.4	0.52
32308		90	35.25	123	150	1.01
33208		80	32	112	144	0.73
32008X		68	19	51.4	71.6	0.27
30209	45	85	20.75	64.8	74.7	0.46
30309		100	27.25	114	130	0.96
31309		100	27.25	91	102	0.947
32209		85	24.75	81.1	98.8	0.56
32309		100	38.25	143	172	1.34
33109		80	26	88	119	0.52
33209		85	32	116	155	0.81
32009X		75	20	61.6	84.6	0.33
30210	50	90	21.75	73.6	87.5	0.52
30310		110	29.25	131	150	1.23
31310		110	29.25	106	120	1.22
32210		90	24.75	82.3	100	0.6
32310		110	42.25	173	211	1.66
33210		90	32	120	166	0.83
32010X		80	20	64.8	92.9	0.37
30211	55	100	22.75	94.9	114	0.68
30311		120	31.5	150	172	1.56
31311		120	31.5	130	158	1.56
32211		100	26.75	112	141	0.82
32311		120	45.5	211	265	2.13
33211		100	35	150	201	1.13
32011X		90	23	88	126	0.57
32310/55		110	42.25	173	211	1.66
30212	60	110	23.75	99.1	117	0.87
30312		130	33.5	186	221	1.96
31312		130	33.5	145	176	1.91
32212		110	29.75	127	160	1.12
32312		130	48.5	244	310	2.69
33212		110	38	183	253	1.53
32012X		95	23	89.6	132	0.6
30213	65	120	24.75	12.1	146	1.1
30313		140	36	206	242	2.41
31313		140	36	165	202	2.39
32213		120	32.75	161	209	1.52
32313		140	51	280	358	3.26
33213		120	41	205	280	1.99
32013X		100	23	91	138	0.63
30214	70	125	26.25	128	157	1.28
30314		150	38	233	276	2.92
31314		150	38	218	274	2.95
32214		125	33.25	169	224	1.59
32314		150	54	316	407	4.25
33214		125	41	220	314	2.08
32014X		110	25	105	166	0.94
30215	75	130	27.25	141	179	1.33
30315		160	40	250	318	3.58
31315		160	40	209	245	3.39
32215		130	33.25	170	227	1.65
32315		160	58	346	488	5.34
33015		115	31	147	240	1.15
33115		125	37	189	287	1.73
33215		130	41	219	316	2.14
32015X		115	25	106.1	170	0.9
30216	80	140	28.25	151	187	1.59
30316		170	42.5	278	356	4.27
32216		140	35.25	190	249	2.03
32316		170	61.5	387	549	6.38
33116		130	37	193	299	1.85
33216		140	46	272	403	2.94
32016X		125	29	154	239	1.28
30217	85	150	30.5	184	235	2.02
30317		180	44.5	304	292	4.97
32217		150	38.5	227	305	2.57
32317		180	63.5	421	599	7.3
33217		150	49	325	483	2.03
32017X		130	29	151	235	1.34
30218	90	160	32.5	197	250	2.49
30318		190	46.5	341	341	5.79
32218		160	42.5	258	348	3.28
32318		190	67.5	477	477	8.78
33118		150	45	284	447	3.22
32018X		140	32	170	264	1.73
30219	95	170	34.5	218	276	2.95
30319		200	49.5	368	483	6.8
32219		170	45.5	293	401	4.01
32319		200	71.5	515	745	10.7
33019		145	39	228	378	2.19
32019X		145	32	172	274	1.8
30220	100	180	37	278	375	3.77
30320		215	51.5	402	490	8.2
32220		180	49	341	478	4.9
32320		215	77.5	572	780	13
33220		180	63	429	655	6.78
32020X		150	32	180	296	1.77
30221	105	190	39	309	419	4.48
32221		190	53	369	516	5.9
32321		225	81.5	646	95	14.5
32021X		160	35	210	339	2.32
30222	110	200	41	314	445	5.21
32222		200	56	426	612	7.06
32322		240	84.5	722	1070	17.8
33022		170	47	315	563	3.8
32022X		170	38	261	433	3.11
30224	120	215	43.5	335	487	6.19
32224		215	61.5	502	753	8.89
32324		260	90.5	824	1240	21.7
32024X		180	38	271	466	3.34
30226	130	230	43.75	364	525	6.94
32226	130	230	67.75	429	895	11.5
30228	140	250	45.75	407	589	8.75
32228		250	71.75	640	1060	14.4
32028X		210	45	364	641	5.29
32230	150	270	77	718	1190	18.2
32030X	150	225	48	369	655	6.38
32232	160	290	84	852	1440	21.1
32032X	160	240	51	429	780	7.53
30034	170	310	91	1010	1630	28.5
32334	170	360	128	13000	1760	59.5
32236	180	320	91	998	1720	29.8
32036X	180	280	64	644	1160	14.5
32238	190	340	97	1110	1920	36
32240	200	360	104	1210	2000	42.7
32244	220	400	115	1530	2560	58.3
