Thrust hard cylindrical roller bearings

Thrust hard cylindrical roller bearings

SYSTEM DESCRIPTION:

0

TECHNICAL DRAWING:

PDF-Download

PRODUCT DETAILS:

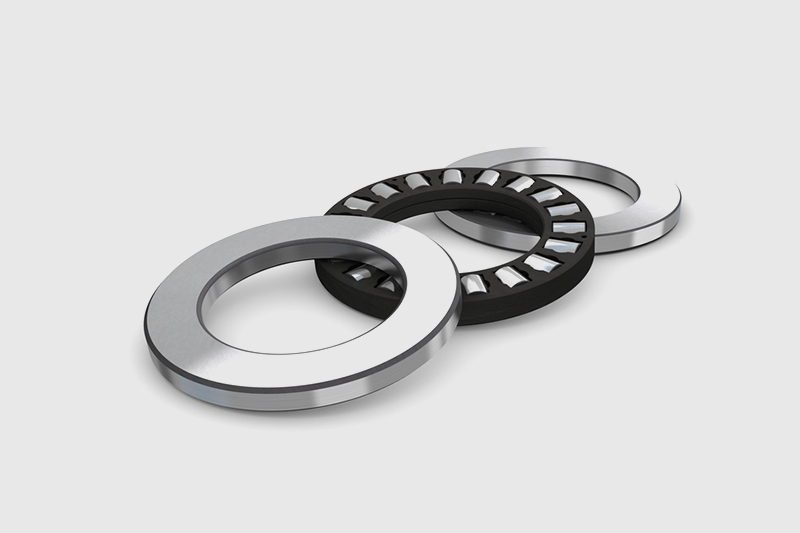

Thrust cylindrical roller bearings are designed to accommodate heavy axial loads and impact loads.They must not be subjected to any radial load. The bearings are very stiff and require little axial space.

Principal dimensions Basic load ratings Speed ratings Bearing No
dynamic static Reference speed Limiting speed
d[mm] D[mm] H[mm] Dw[mm] C[kN] C0[kN] [r/min] [r/min]
15 28 9   11.2 27 4300 8500 GS 81102
28   3.5 11.2 27 4300 8500 K 81102 TN
17 30 9   12.2 31.5 4300 8500 GS 81103
30   3.5 12.2 31.5 4300 8500 K 81103 TN
20 35 10   18.6 48 3800 7500 GS 81104
35   4.5 18.6 48 3800 7500 K 81104 TN
25 42 11   25 69.5 3200 6300 GS 81105
42   5 25 69.5 3200 6300 K 81105 TN
30 47 11   27 78 3000 6000 GS 81106
47   5 27 78 3000 6000 K 81106 TN
52 16   50 134 2400 4800 GS 81206
52   7.5 50 134 2400 4800 K 81206 TN
60 18   52 183 2600 5300 GS 89306
60   5.5 52 183 2600 5300 K 89306 TN
35 52 12   29 93 2800 5600 GS 81107
52   5 29 93 2800 5600 K 81107 TN
62 18   62 190 2000 4000 GS 81207
62   7.5 62 190 2000 4000 K 81207 TN
68   6 62 220 2400 4800 K 89307 TN
40 60 13   43 137 2400 5000 GS 81108
60   6 43 137 2400 5000 K 81108 TN
68 19   83 255 1900 3800 GS 81208
68   9 83 255 1900 3800 K 81208 TN
78 22   95 365 2000 4000 GS 89308
45 65 14   45 153 2200 4500 GS 81109
65   6 45 153 2200 4500 K 81109 TN
73 20   83 255 1800 3600 GS 81209
73   9 83 255 1800 3600 K 81209 TN
85 24   108 425 1800 3600 GS 89309
85   7.5 108 425 1800 3600 K 89309 TN
50 70 14   47.5 166 2200 4300 GS 81110
70   6 47.5 166 2200 4300 K 81110 TN
78 22   91.5 300 1700 3400 GS 81210
78   9 91.5 300 1700 3400 K 81210 TN
95   8 132 530 1600 3200 K 89310 TN
55 78 16   69.5 285 1900 3800 GS 81111
78   6 69.5 285 1900 3800 K 81111 TN
90 25   122 390 1400 2800 GS 81211
90   11 122 390 1400 2800 K 81211 TN
105 30   143 570 1500 3000 GS 89311
105   9 143 570 1500 3000 K 89311 TN
60 85 17   80 300 1800 3600 GS 81112
85   7.5 80 300 1800 3600 K 81112 TN
95 26   137 465 1400 2800 GS 81212
95   11 137 465 1400 2800 K 81212 TN
110 30   153 640 1400 2800 GS 89312
110   9 153 640 1400 2800 K 89312 TN
130 42   310 1180 1200 2400 GS 89412
130   14 310 1180 1200 2400 K 89412 TN
65 90 18   83 320 1700 3400 GS 81113
90   7.5 83 320 1700 3400 K 81113 TN
100 27   140 490 1300 2600 GS 81213
100   11 140 490 1300 2600 K 81213 TN
115 30   153 640 1400 2800 GS 89313
115   9 153 640 1400 2800 K 89313 TN
140 45   355 1370 1100 2200 GS 89413
140   15 355 1370 1100 2200 K 89413 TN
70 95 18   86.5 345 1700 3400 GS 81114
95   7.5 86.5 345 1700 3400 K 81114 TN
105 27   146 530 1300 2600 GS 81214
105   11 146 530 1300 2600 K 81214 TN
125 34   186 800 1300 2600 GS 89314
125   10 186 800 1300 2600 K 89314 TN
150 48   380 1460 1000 2000 GS 89414
150   16 380 1460 1000 2000 K 89414 TN
75 100 19   83 335 1600 3200 GS 81115
100   7.5 83 335 1600 3200 K 81115 TN
110 27   137 490 1200 2400 GS 81215
110   11 137 490 1200 2400 K 81215 TN
135 36   228 965 1200 2400 GS 89315
135   11 228 965 1200 2400 K 89315 TN
160 51   400 1530 950 1900 GS 89415
160   17 400 1530 950 1900 K 89415 M
80 105 19   81.5 335 1500 3000 GS 81116
105   7.5 81.5 335 1500 3000 K 81116 TN
115 28   160 610 1200 2400 GS 81216
115   11 160 610 1200 2400 K 81216 TN
140 36   240 1060 1200 2400 GS 89316
140   11 240 1060 1200 2400 K 89316 TN
170 54   440 1730 900 1800 GS 89416
170   18 440 1730 900 1800 K 89416 M
85 110 19   88 365 1500 3000 GS 81117
110   7.5 88 365 1500 3000 K 81117 TN
125 31   170 640 1100 2200 GS 81217
125   12 170 640 1100 2200 K 81217 TN
150 39   255 1100 1100 2200 GS 89317
150   12 255 1100 1100 2200 K 89317 M
180 58   490 1930 850 1700 GS 89417
180   19 490 1930 850 1700 K 89417 M
90 120 22   110 450 1300 2600 GS 81118
120   9 110 450 1300 2600 K 81118 TN
135 35   232 865 1000 2000 GS 81218
135   14 232 865 1000 2000 K 81218 TN
155 39   265 1160 1000 2000 GS 89318
155   12 265 1160 1000 2000 K 89318 M
190 60   540 2120 800 1600 GS 89418
190   20 540 2120 800 1600 K 89418 M
100 135 25   156 630 1200 2400 GS 81120
135   11 156 630 1200 2400 K 81120 TN
150 38   270 1060 900 1800 GS 81220
170   13 300 1370 950 1900 K 89320 M
210 67   680 2800 700 1400 GS 89420
210   22 680 2800 700 1400 K 89420 M
