Sealed spherical roller bearings have specific lubrication requirements to ensure optimal performance and longevity. Here are some key aspects to consider:
1.Pre-lubrication: Sealed spherical roller bearings are typically pre-lubricated at the factory. The appropriate amount of lubricant is carefully applied during the manufacturing process. This initial lubrication provides sufficient lubricant for the early stages of operation.
2.Long-term lubrication: Sealed spherical roller bearings are designed to be maintenance-free and do not require re-lubrication during their operational life. The seals on the bearings help retain the lubricant and prevent contaminants from entering, minimizing the need for additional lubrication.
3.Lubricant type: The lubricant used in sealed spherical roller bearings is usually a high-quality grease specifically formulated for the bearing's application and operating conditions. The type of grease used depends on factors such as temperature, load, and speed requirements. It is important to use the recommended grease or consult the manufacturer's guidelines to ensure proper lubrication.
4.Operating temperature: Sealed spherical roller bearings have temperature limits specified by the manufacturer. It is crucial to operate the bearings within the specified temperature range to maintain the effectiveness of the lubricant. Excessive temperatures can degrade the grease and affect the bearing's performance.
5.Sealing effectiveness: The seals on sealed spherical roller bearings play a crucial role in retaining the lubricant and protecting the bearing from contaminants. Ensure that the seals are intact, properly installed, and functioning effectively. Damaged or compromised seals may lead to lubricant leakage or contamination, which can impact the bearing's performance.
6.Monitoring: Regular monitoring of the bearing's performance, including temperature and vibration analysis, can help detect any potential lubrication issues. Unusual temperature increases or abnormal vibration patterns may indicate lubrication problems or other underlying issues that need attention.
Spherical Sealed Spherical Roller Bearings thrust bearings

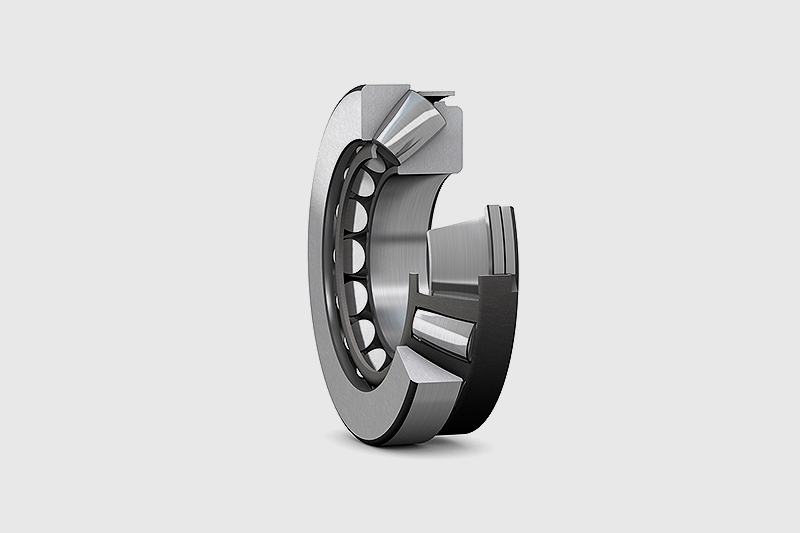

Spherical roller thrust bearings have specially designed raceways and asymmetrical rollers. The bearings can accommodate axial loads acting in one direction and simultaneously acting radial loads. The load is transmitted between the raceways via the rollers at an angle to the bearing axis, while the flange guides the rollers.
